Installing Airis Sense – Hood-mounted Multisensor

Preparing for installation

Unboxing the Airis stove guard

Inside the box you will find:

1. Installation and user manual
2. AA batteries for the Multisensor
3. Rubber grommet and plastic earth connector
4. Multisensor rear casing (black)
5. Multisensor front casing (white)
6. Power Control Unit (PCU)
7. Cleaning wipe
8. Warranty registration card

Installing your Airis stove guard

This installation guide offers supplementary guidance for installers. Please refer to the manufacturer's user/installation guide included with the product.

Installing the Power Control Unit (PCU)

Step 1

• Find a suitable location for the PCU. Suggested positions include:

• Where a hob is located above a built-in oven, the PCU can be mounted behind the oven.
• Under the cooker plinth.
• In a cupboard adjacent to the cooker.
• For a free-standing cooker, near the floor behind it.

Do not install the PCU where it will be exposed to moisture or excessive heat.

Step 2

• Open the PCU casing by removing the four screws at each corner.

Step 3

• Wire the PCU as shown in the diagram below:

Step 4

• Replace the PCU casing and mount the unit in the desired position.

Mounting the Multisensor on the cooker hood

Install Multisensor batteries to activate wireless connection

Step 1

• Detach the mounting bracket from the Multisensor unit by pulling gently.

Step 2

• Insert the batteries in the Multisensor unit, noting the battery polarity marked on the unit.

Step 3

• Switch on the power supply to the PCU. The Multisensor and PCU are now connected.

Mount the Multisensor unit

Step 1

• Remove grease and dirt from the cooker hood surface.

Step 2

• Remove the red protection strips from the adhesive tape.

Step 3

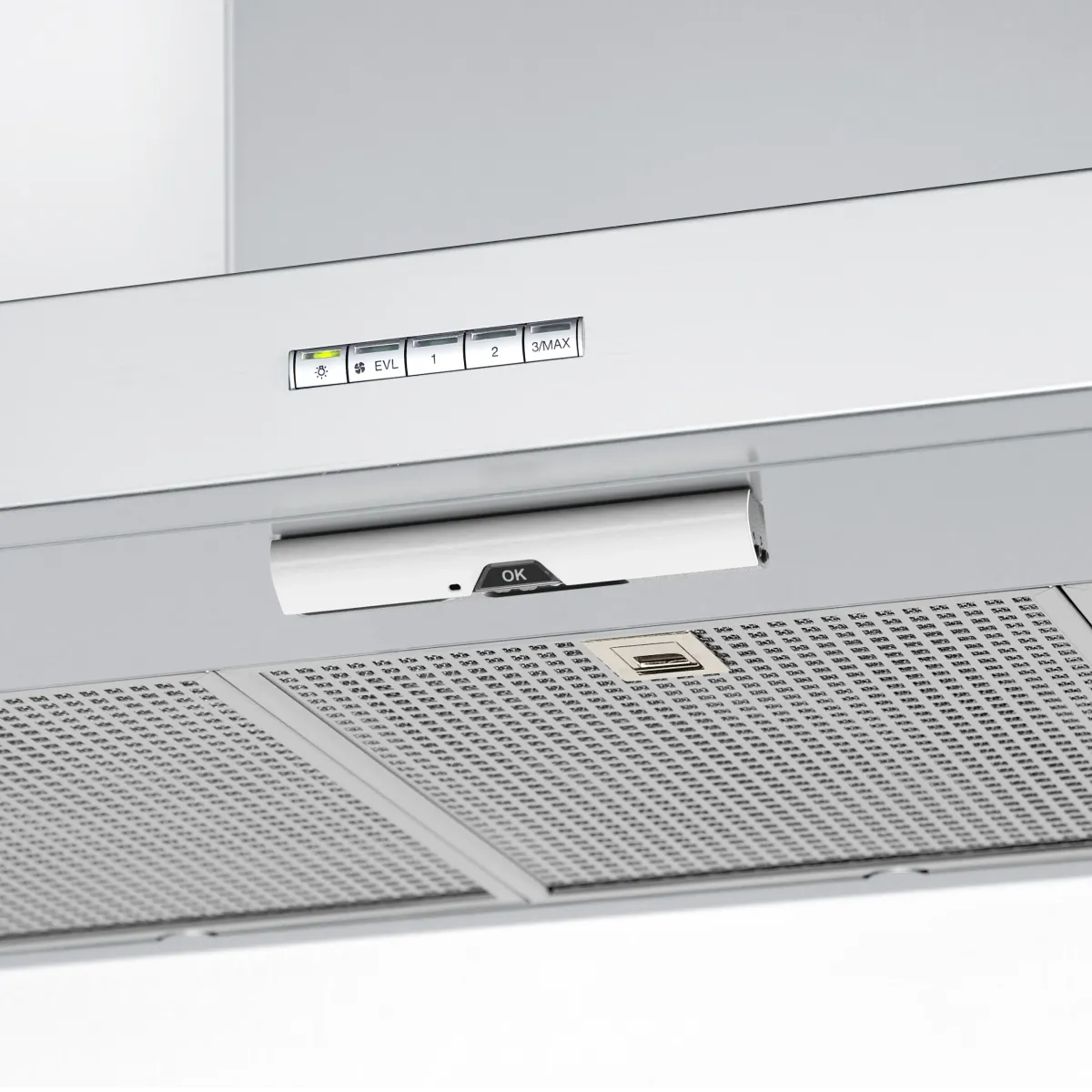

• Mount the Multisensor on the cooker hood.

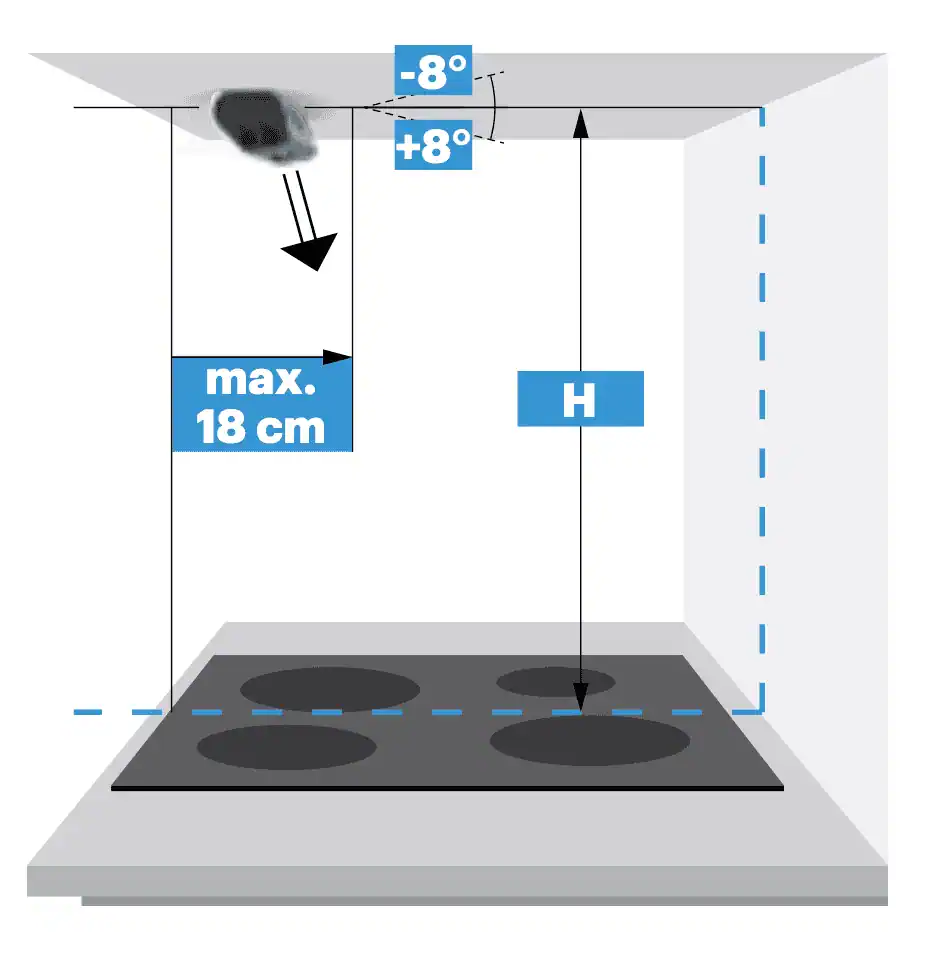

The Multisensor must be mounted in the centre line of the cooker to provide optimal sensing of all cooking surfaces.

Mounting height specifications:
